Exploring UI node anchors

An essential part of creating user interfaces is defining how elements are positioned with respect to one another. In Godot, we do this by composing control nodes. They are represented with green icons. control nodes are special nodes that can be positioned with respect to one another using anchors and containers, two core features of Godot's UI system. Once you understand them, the engine's UI system makes much more sense.
open in new tab
In this lesson, we'll create a test scene with a single texture. We'll use it to experiment with anchors and play around with them to get a feel for how they work.
You'll learn how to:
  • Resize and anchor a Control node.
  • Use the Anchor Presets to quickly set anchors.
  • Experiment with different anchor settings.
Remember the programmer mindset? The point here is to start picking up the habits of experienced developers and power users: Learning a new tool by playing with it and running little experiments.
When I started, there wasn't much documentation or tutorials for some of the tools I wanted to learn, so the only way to pick them up was to experiment. It's a great way to learn because what you discover sticks with you better. And it's fun!
Nathan
Founder and teacher at GDQuest

Anchors and containers

Most user interface frameworks have two general ways of placing elements relative to each other:
  1. The element places itself: this is when UI elements, like health bars, icons, or buttons, decide where they should position themselves relative to their parent. For example, a health bar might always stay at the top-left corner of the game window or at the bottom. We achieve this with anchors in Godot.
  2. The parent places children: this is when parents decide where their children go. For example, a grid component could place inventory items in a grid layout, and a horizontal box could place buttons next to each other horizontally. We achieve this with containers in Godot.
In practice, we often mix and match both ways to achieve the desired results.
Some CSS parallels for the webdevs among you
If you've created websites before and used HTML and CSS:
  1. Anchors are a bit like position: absolute. They allow elements to place themselves relative to their parent.
  2. Containers are like display: flex or display: grid. They allow parent elements to place their children in a specific layout.
Note that UI frameworks, whether in Godot or other desktop and mobile applications, have some differences with respect to CSS. You won't be able to directly apply your knowledge of web development but you can still draw some parallels to help you understand concepts faster.
Let's examine this navigation bar to illustrate how anchors and containers work together.
Navigation bar with logo, spacer, a link, notifications, and a user button. The notification and user have a little number indicating there are updates
open in new tab
We have a logo, an empty space, and three buttons placed in a single row. The notifications and user buttons have a little number inscribed in a circle to indicate updates.
To implement this layout, in Godot, we would use:
  1. A container to place the children in a row. The parent would be the outline of the navigation bar and the children would be the logo and the three buttons.
  2. Anchors to position the notification circles relative to the buttons.
To create a navigation bar, we would use Godot's HBoxContainer node to place the children in a row (HBox stands for horizontal box). It's one of the most useful Godot containers, along with VBoxContainer, which arranges children vertically, and GridContainer, which arranges children in a grid.

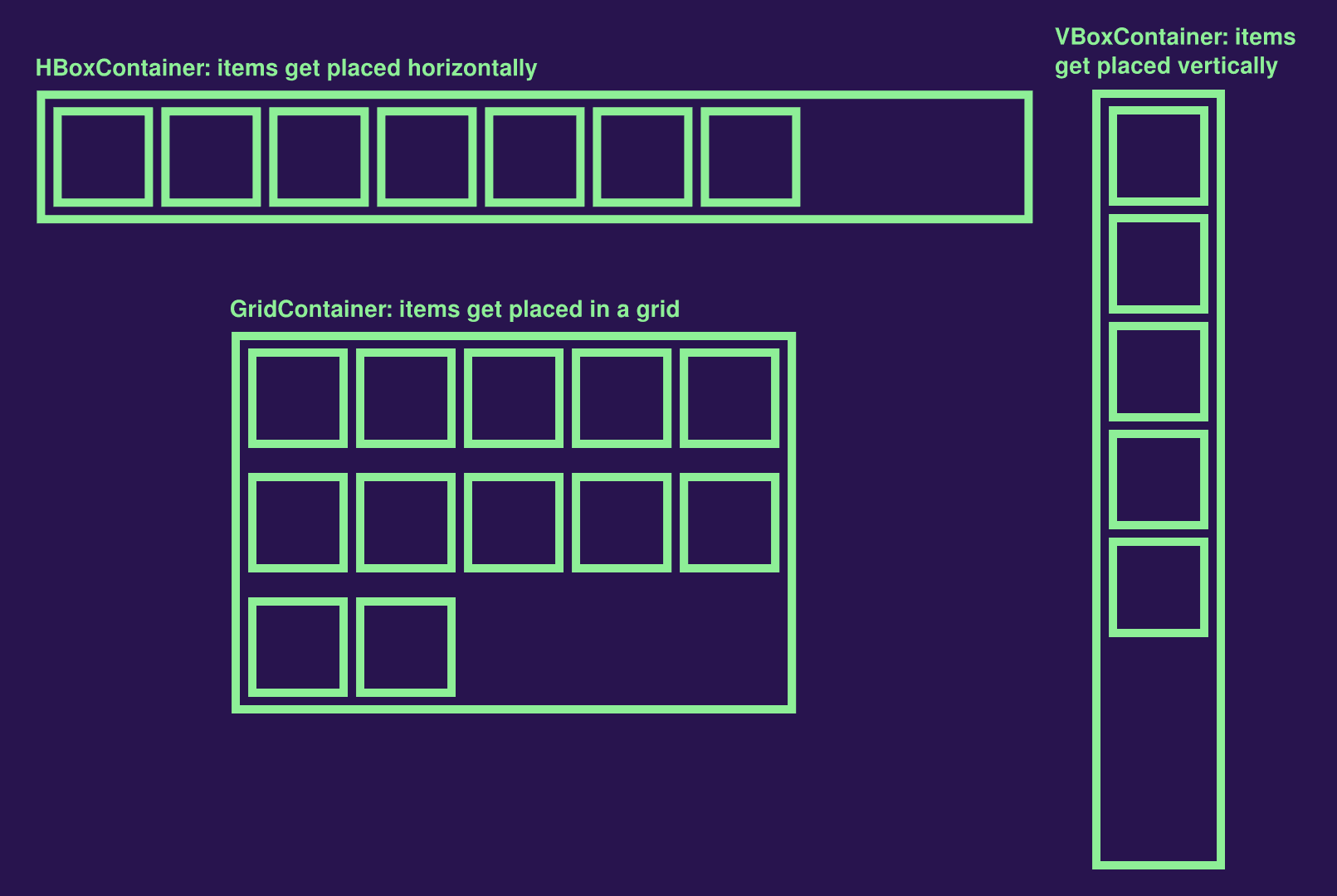

Example of containers
open in new tab
Example of containers
Three of the most useful container node types in Godot
You'll get to experiment with containers in the next module M8. We'll use the VBoxContainer node to create dialogue choices for the player and align them vertically. For now, in this module, we'll work exclusively with anchors to place elements in the scene.
Anchors define the position of each corner of a Control node proportionally to its parent
If a Control node has no parent, then the anchors are relative to the game window.
Control node. There are four anchors: top left, top right, bottom left, and bottom right. This image illustrates a few anchor positions:

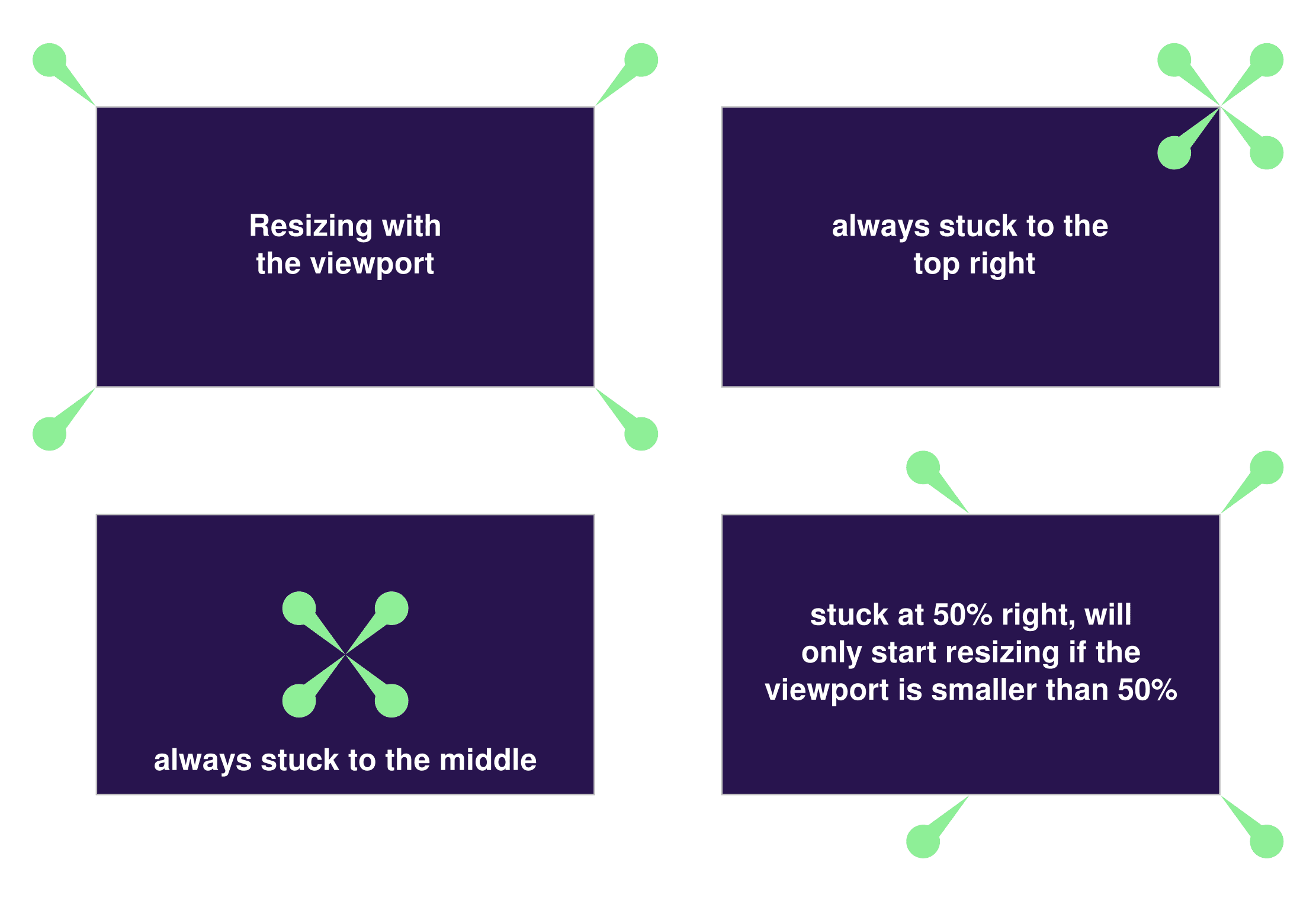

Examples of anchors
open in new tab
Examples of anchors
Examples of anchors
Ok, now let's try this in Godot!

Create and resize a TextureRect node

We'll create a new scene with a single texture and try different anchor settings to see how they affect the texture's size and position. Later, we'll build upon this to create the dialogue scene.
By default, the project should have no scene open. Click the User Interface button in the Scene dock to create a new scene with a Control node as the root that covers the entire game window. You can see this thanks to the large bounding box and the four green pins at the four corners of the node.
Creating a new user interface scene
open in new tab
My Control node is small and at the top left of the viewport
When creating a Control node with the shortcut the add child node shortcut, the node is created at the top left of the viewport with a small size. In that case, you need to change its anchor layout to make it cover the entire game window.
To do this, select the Control node in the Scene dock. In the toolbar above the viewport, click the Anchor Presets button and select the Full Rect preset. This will resize the node to cover the entire game window. We'll talk more about anchor layouts in a moment.
Rename the node to Dialogue and save the scene in the lessons folder as dialogue.tscn.
You will first add a test image that you'll use to experiment with anchors. For this, you'll use a TextureRect. A TextureRect is a type of control node that displays a texture image.
The difference with sprite nodes is that TextureRect inherits from Control nodes, so it can use anchors, while sprites are regular 2D nodes and can't use them. You can think of TextureRect as a Sprite2D that can be used in the engine's UI system.
Add a new TextureRect node as a child of the Dialogue node. You can press ctrla (on Mac: ⌘a) to open the Create New Node dialog. A small empty orange box appears in the viewport.
With the Select Mode active (q), notice how there are also four green pins anchored at the top left corner of the box. They represent the anchors of the TextureRect node.
Adding a TextureRect node
open in new tab
In the FileSystem dock, double-click the assets folder to expand it. In this folder, you can see an image file named test.svg.
Drag this image on the TextureRect node in the Scene dock to apply it to the node. This is equivalent to dragging and dropping the file to the Texture property in the Inspector. This resizes the node in the viewport to match the texture size.

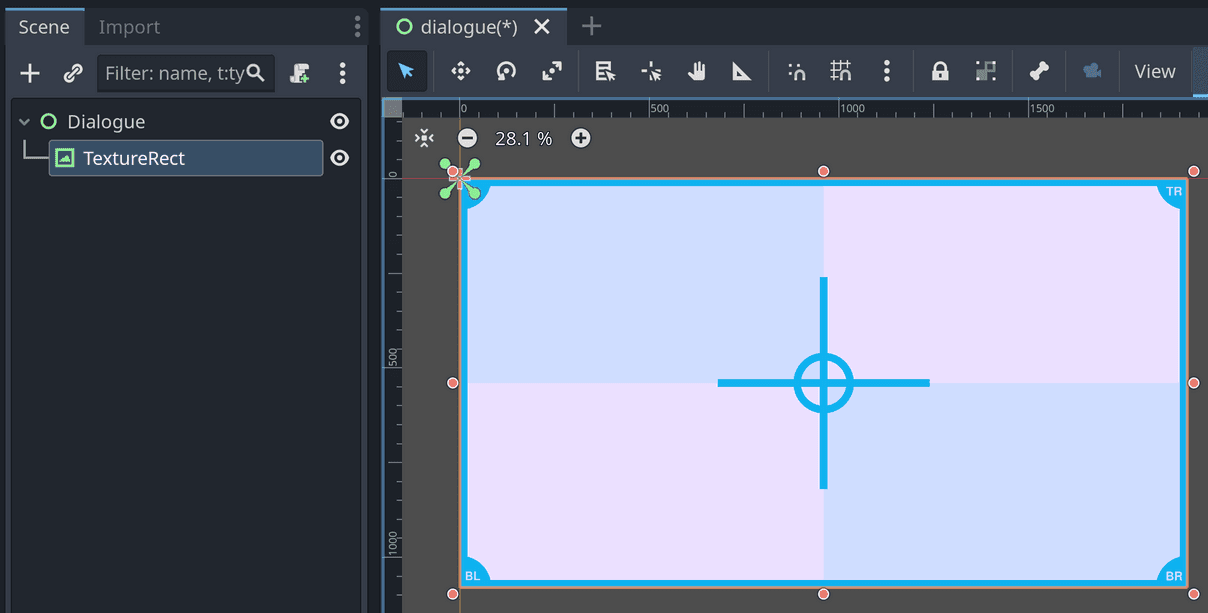

The TextureRect node with the test.svg texture applied
open in new tab

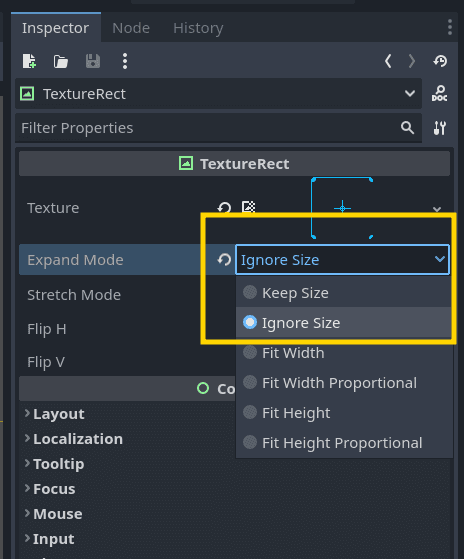

In the inspector, the Expand Mode property of the TextureRect node determines how the texture stretches. By default, it's set to Keep Size, which forces the node to match the texture's size. Instead, let's allow our TextureRect node to dictate the size of the texture.
In the Inspector, change the Expand Mode to Ignore Size. This will change the image size to fit the node's bounding box, regardless of the texture's original dimensions. The node should shrink to a small size after changing the setting.
select expand mode
open in new tab

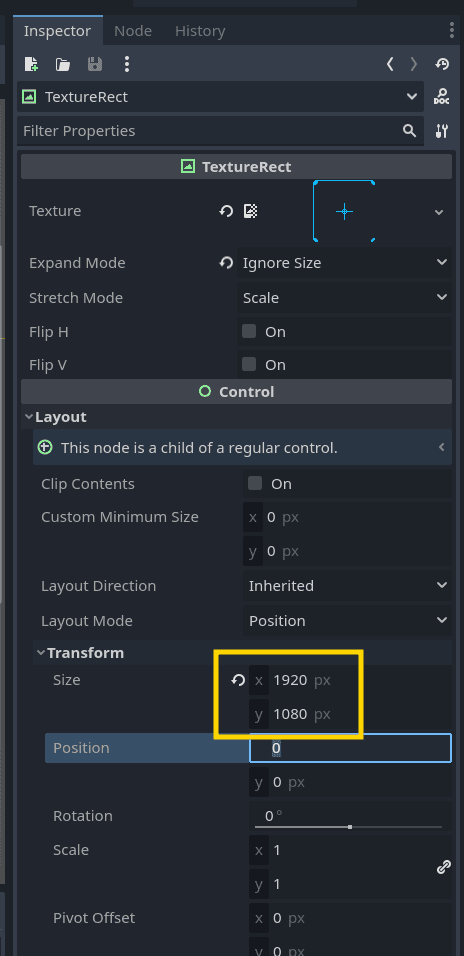

You can now use the Select Mode and click and drag the orange handles to resize the node. Stretch the node until it covers the entire screen. You can also change the node's size precisely in the Inspector. In the LayoutTransform category, set the Size property to 1920 by 1080 (these are the dimensions of our game window).
Setting the size
open in new tab
Time to test! Press f6 (on Mac: ⌘r) to run the scene. Once your game is running, try resizing the window to make it smaller. And notice that... the image gets cropped! That's normal. The TextureRect node is anchored to the top left of the game window by default, so it doesn't resize with the window. It just stays positioned at the top left.
open in new tab
I cannot resize the window!
On Windows, if your screen resolution is smaller or equal to the game's resolution (and window size).
If you're experiencing this issue, you can try the following steps to reduce the window size while preserving the ability to follow along the lessons:
  • Open the ProjectProject Settings... window.
  • Turn on the Advanced Settings radio button at the top right of the window.
  • Navigate to the DisplayWindow category.
  • Find the Window Width Override and Window Height Override settings.
  • Set Window Width Override to 1280 and Window Height Override to 720.
The Window Width Override and Window Height Override settings change the size of the game window without affecting the editor viewport. You can use these settings to run your game in different resolutions.
open in new tab

Change the anchors

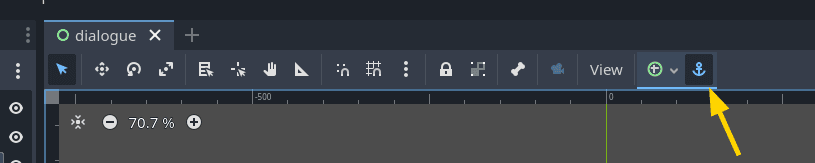

You will now change the node anchors. With the TextureRect node selected, click the Anchor Presets button in the toolbar above the viewport and select the Full Rect preset.
open in new tab
This preset moves the anchors to the four corners of the parent node: the top left anchor is at the top left corner of the parent, the top right anchor is at the top right corner, and so on. You can see this with the four green pins in the viewport on each corner of the node. This causes the node to resize with its parent and, in this case, with the game window. The Full Rect preset is a good starting point for most user interfaces.
My TextureRect node becomes small, it does not resize to cover the screen
An anchor layout is relative to the parent Control node. If the parent node is small, the child node will also be small. In this case, the parent node is the Control node at the root of the scene.
To address this:
  • Select the parent Control node in the Scene dock.
  • Click the Anchor Presets button in the toolbar above the viewport
  • Select the Full Rect preset.
The parent node should now cover the entire game window. The TextureRect node should automatically resize to cover the screen as well. If not, you can select the TextureRect node again and apply the Full Rect preset to it too.
Run the scene again, and try resizing the window. Now, the texture resizes with it!
open in new tab
Let's try moving the green pins manually to better understand how anchors work. With the Select Mode active in the toolbar, click and drag the green pin in the right corner of the TextureRect node. This is the top right anchor. Drag it to the left until it reaches the center of the top edge of the node.
It should snap to the center of the top edge once you reach it with the mouse, which Godot indicates by drawing a red vertical line. These anchors mean the texture will now scale half as much horizontally as it does vertically. The texture will still resize to fit the window vertically.
open in new tab
To better understand these anchors' effect, let's resize the TextureRect node. Locate the LayoutTransformSize property in the Inspector and halve the width and height of the node. You can run math in property fields

You can do math in any number field in Godot

You can actually write math expressions in all numerical fields in the editor. Divide, multiply, or add numbers right there! The engine will do the math for you.
by clicking the number in the Size property and typing /2 after the number, then pressing ↵.
open in new tab
The texture should cover the top left quarter of the screen as we divided the size by two.
Now, if you run the scene, you should see the image resize horizontally to half the width of the screen.
open in new tab
Generally speaking, when anchors are at the corners of a node, the node resizes proportionally with its parent. When the anchors are not at the corners, the node tries to maintain a fixed distance from the anchors.

Try Answering this

What do anchors affect?

The behavior of anchors isn't always intuitive! Actually, we often use one of the provided anchor presets, which offer the most commonly used configurations. But placing anchors manually has its uses, especially when you want to create a specific UI layout.
I don't expect you to remember all of this right now. I just want you to know that anchors exist, that they affect the size and position of a Control node, and that they can be moved manually or placed with presets.

Let's explore

It's time to learn by experimenting. You have some basics down, but there's much more to explore. Let's sail some more before uh... dropping the anchor.
Try different anchor settings and see how they affect the texture. Feel free to add different textures, or even add other TextureRect nodes to the scene and experiment with them.
Don't worry about messing anything up. We will delete this texture and make a fresh new one in the next lesson.
Here are four general tips to help guide you. Try them one by one; you can always undo them by pressing ctrlz (on Mac: ⌘z).

Tip 1: Anchor values

When moving anchors interactively in the viewport, you can see their values in the Inspector under the category LayoutAnchor Points. The values range from 0 to 1, where 0 is the top left corner and 1 is the bottom right corner.
Note that the Anchor Points category only appears when the node's LayoutAnchor Presets is set to Custom.
How come I can drag the anchors beyond 0 and 1 then?
Technically, you can drag your anchors outside the limits of your viewport (delineated by the red, green and blue lines), but that's not useful for most applications. It would resize your texture proportionally to a distance outside your game screen. Feel free to try it and run the scene! That's what this lesson's for.
open in new tab

Tip 2: Anchor presets

When you select a Control node, you can apply anchor presets from two places. One is the Anchor Presets button in the toolbar above the viewport. (That's what we used earlier in the lesson to select the Full Rect preset). You can also select anchor presets in the Inspector with the property LayoutAnchor Presets.
open in new tab
Changing the anchor presets moves and resizes the node
When you change the anchors presets, your node's size will also change. The anchor presets are a quick way to set the anchors, position, and size of UI elements at the same time.

Tip 3: Duplicate nodes

You can duplicate a selected node by pressing ctrld (on Mac: ⌘d). The new node will appear in the scene dock. In the viewport, the copy of the texture will overlap with the one you duplicated. To see it, you can drag it somewhere else.
Remember since you duplicated a node, the new node's anchors will also overlap with the anchors of the original node you duplicated. With the new node selected, you can move its anchors too.
Go ahead and try it!

Tip 4: Move anchors

When you move a Control node with the Select Mode or the Move Mode active, you change its offset. The offset is the distance between the node's anchors and its position. You can also move the anchors with the node without changing the offset by clicking the anchor button in the toolbar above the viewport.
Try clicking the anchor button and moving the node along with its anchors instead of offsetting it.
open in new tab
You may be tempted to rush into the next lesson... I understand! But I recommend taking your time and playing around. Experimentation is very important to really assimilate and own new concepts. That's how you get out of tutorial hell and become able to progress on your own.
Nathan
Founder and teacher at GDQuest
Try placing anchors freely or using presets or anchor values and practice predicting what you'll see when you run the scene and resize the window.
Here's a series of small challenges to guide you, but feel free to come up with your own.
Challenge:
Position the texture at the center of the screen and prevent it from resizing with the window.
open in new tab

click to reveal Hint

click to reveal Hint

click to reveal Hint

click to reveal Hint

Challenge:
Position the texture/image in the center of the screen and allow it to resize with the window. For this challenge, you'll need the image size to be smaller than the game window. A size of 960x540 is a good starting point.
open in new tab

click to reveal Hint

click to reveal Hint

Challenge:
Make two TextureRect nodes that stay in the top left and bottom right corners of the screen, respectively. They shouldn't resize with the window.
open in new tab

click to reveal Hint

Once you feel you have some grasp on how anchors work, let's move on and create our dialogue scene!

Recap

In this lesson, you learned that Godot's UI system relies on two concepts: anchors and containers. Anchors define the position of Control nodes relative to their parent, while containers place their children in a specific layout. We mostly use anchors in this module, but we'll also use containers in the next module to create a branching dialogue system.
It takes a while to get used to working with anchors and containers, so don't worry if they're not entirely clear yet. They'll make more and more sense the more you use them.
The key takeaways at this point are:
  1. There are two ways to position UI elements: anchors and containers.
  2. Anchors affect the position and size of a Control node relative to its parent (or the game window).
  3. You can use anchor presets to quickly set anchors.
  4. You can also fine-tune how a node resizes with the window by moving its anchors manually.
  5. Experimentation is key to understanding new concepts and breaking out of over-reliance on tutorials.
With these new tools in our inventory, we'll get started on our dialogue system. See you in the next lesson!
